Platform 2

The design of shaping machines for workpiece diameters from 180-380 mm is based on customer specific requirements. The shaping head slide provides increased flexibility. The SSM-process allows shaping of oversized gears.

Gear shaping with shaper head carriage
CNC Axes
LFS 200
Module [mm]
6/12
Cutting diameter [mm]
200
Stroke length [mm]
110/180/215
Stroke rate [DH/min]
1,200

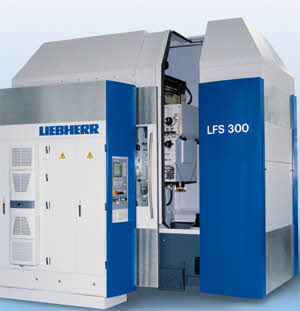

LFS 300
Module [mm]
6/12
Cutting diameter [mm]
300
Stroke length [mm]
110/180/215
Stroke rate [DH/min]
1,200
LFS 380
Module [mm]
6/12
Cutting diameter [mm]
380
Stroke length [mm]
110/180/215
Stroke rate [DH/min]
1,200
Liebherr-gear shaping machine - platform 2
